Polycab LV IS-7098-I 1C-A2XFaY-A2XWaY
5 products sold in last 13 hours
Selling fast! Over 8 people have in their cart
29 people are viewing this right now
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200

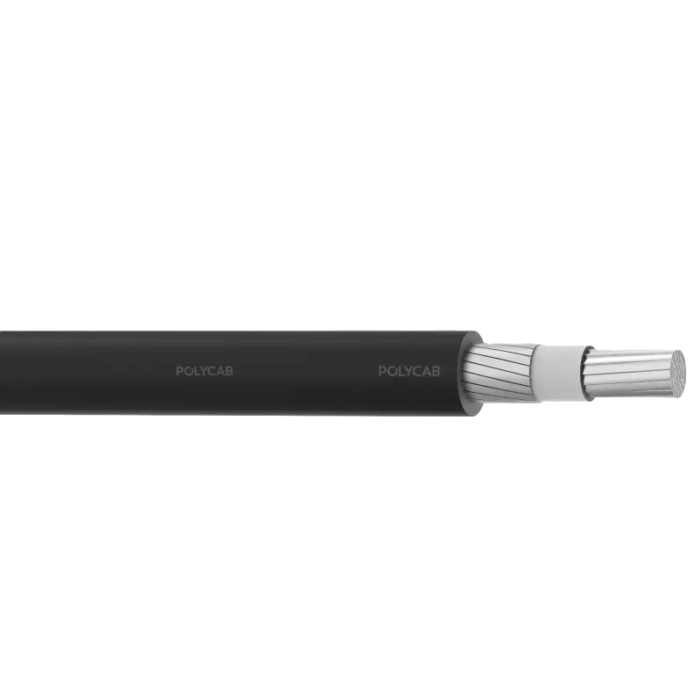

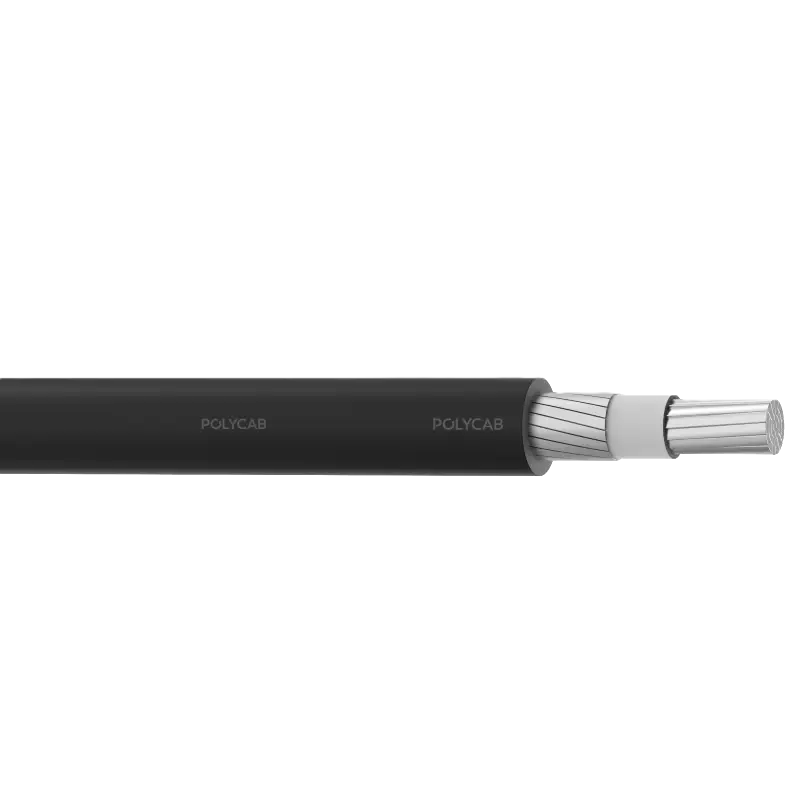

Single core Aluminium, XLPE Insulation , Al round / flat armoured , PVC Outer sheathed cable.
click here| GENERAL INFORMATION | |
|---|---|
| Product Type | LV Power Cable |
| Brand | Polycab |
| Model | LV IS-7098-I 1C-A2XFaY-A2XWaY |
| Cable Type | Single Core Armoured Cable |
| Number of Cores | 1 Core |
| Conductor Material | Stranded Compacted Aluminium |
| Conductor Class | Class 2 as per IS 8130 |
| Insulation Material | XLPE (Cross Linked Polyethylene) |
| Armour Type | Aluminium Round / Flat Wire Armoured |
| Outer Sheath Material | PVC (ST2 / FRLS / FR / LSZH) |
| Voltage Rating AC | 650/1100 V AC (1.1 kV) |
| Voltage Rating DC | Up to 1500 V DC |
| Maximum Operating Temperature | 90°C |
| Maximum Short Circuit Temperature | 250°C |
| Core Identification | Red / Black / Yellow / Blue / Natural |
| Bending Radius | 12 × Overall Diameter |
| Installation Type | Fixed Installation |
| Application | Power Distribution, Underground, Utility Systems |
| Flame Retardant | Yes |
| Low Smoke | Yes |
| Low Halogen | Yes |
| UV Resistant | Yes |
| High Insulation Resistance | Yes |
| Standards Followed | IS 7098-1, IS 8130, IS 3975 |
| Conductor Resistance Compliance | IS 8130-2013 |
| Insulation Resistance Compliance | IS 7098-1:1988 |
| Armour Test | IS 7098-1 |
| Brand Customer Care Email ID | enquiry@polycab.com |
| Brand Customer Care Phone No | 1800 267 0008 |
| ITEM DIMENSIONS | |
| Attribute | Value |
| Nominal Cross Sectional Area | 4 sq.mm (available from 4-630 mm²) |
| Insulation Thickness | 0.70 mm (for 4 mm²) |
| Armour Thickness | 1.20 mm (for 4-25 mm²) |
| Sheath Thickness | 1.30 mm (for 4 mm²) |
| Overall Diameter | 14.8 mm (for 4 mm²) |
| Approximate Weight | 260 Kg/Km (for 4 mm²) |
