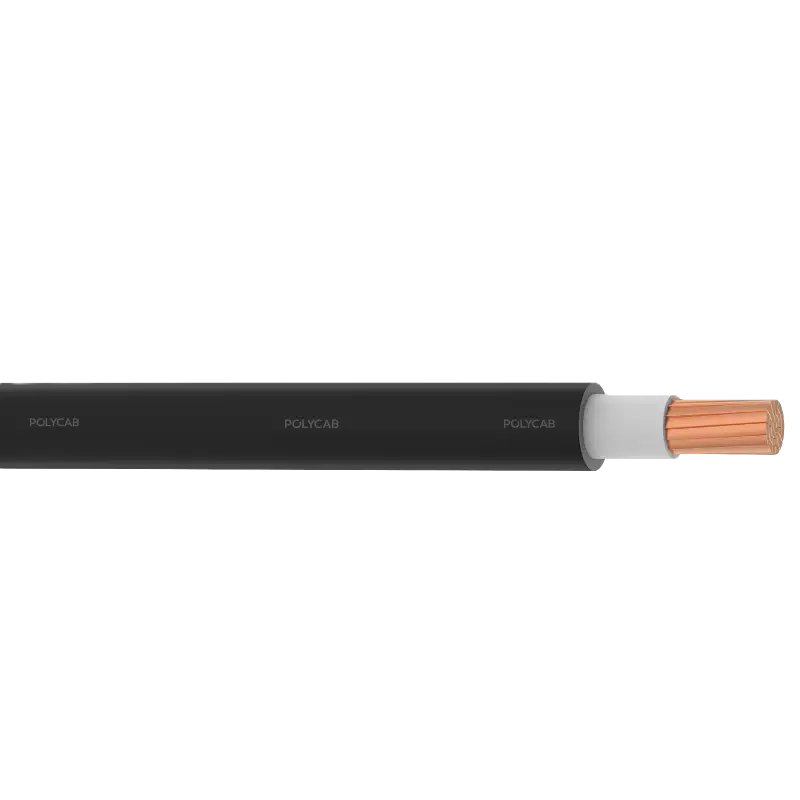

Polycab LV IS-7098-I 1C-2XY
9 products sold in last 16 hours
Selling fast! 1 person has in their cart
POLYCAB 2XY SC, stranded compacted copper conductor, XLPE insulated and PVC sheathed confirming to IS 7098-1 is suitable for AC single phase or three phase (earthed or unearthed) systems with rated voltage up to and including 1100 V. This cable is also suitable for DC systems with rated voltage up to and including 1500 V.
28 people are viewing this right now
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
Single core Copper, XLPE Insulation , unarmoured & PVC Outer sheathed cable.
click here| GENERAL INFORMATION | |
|---|---|
| Product Type | LV Power Cable |
| Brand | Polycab |
| Model | LV IS-7098-I 1C-2XY |
| Cable Type | Single Core Unarmoured Cable |
| Number of Cores | 1 Core |
| Conductor Material | Stranded Compacted Copper |
| Conductor Class | Class 1 or 2 as per IS 8130 |
| Insulation Material | XLPE (Cross Linked Polyethylene) |
| Outer Sheath Material | PVC (ST2 / FRLS / FR / LSZH) |
| Voltage Rating | 650/1100 V AC (1.2 kV) / 1500 V DC |
| Maximum Operating Temperature | 90°C |
| Maximum Short Circuit Temperature | 250°C |
| Core Identification | Red / Black / Yellow / Blue / Natural |
| Bending Radius | 12 x Overall diameter |
| Installation Type | Fixed Installation |
| Application | Power Distribution and Industrial Installations |
| Flame Retardant | Yes |
| Low Smoke | Yes |
| Low Halogen | Yes |
| UV Resistant | Yes |
| High Insulation Resistance | Yes |
| Armour Type | UnArmoured (UA) |
| Standards Followed | IS 7098-1, IS 8130 |
| Conductor Resistance Compliance | IS 8130:2013 |
| Insulation Resistance Compliance | IS 7098-1 |
| Flame Retardant Test | IEC 60332-1 |
| Brand Customer Care Email ID | enquiry@polycab.com |
| Brand Customer Care Phone No | 1800 267 0008 |
| ITEM DIMENSIONS | |
| Attribute | Value |
| Nominal Cross Sectional Area | Available in 1.5 to 630 mm² (View datasheet for specific size) |
| Insulation Thickness | Varies by size (View datasheet for specific size) |
| Inner Sheath Thickness | Not Applicable (No inner sheath) |
| Armour Thickness | Not Applicable (Unarmoured) |
| Sheath Thickness | Varies by size (View datasheet for specific size) |
| Overall Diameter | Varies by size (View datasheet for specific size) |
| Approximate Weight | Varies by size (View datasheet for specific size) |
