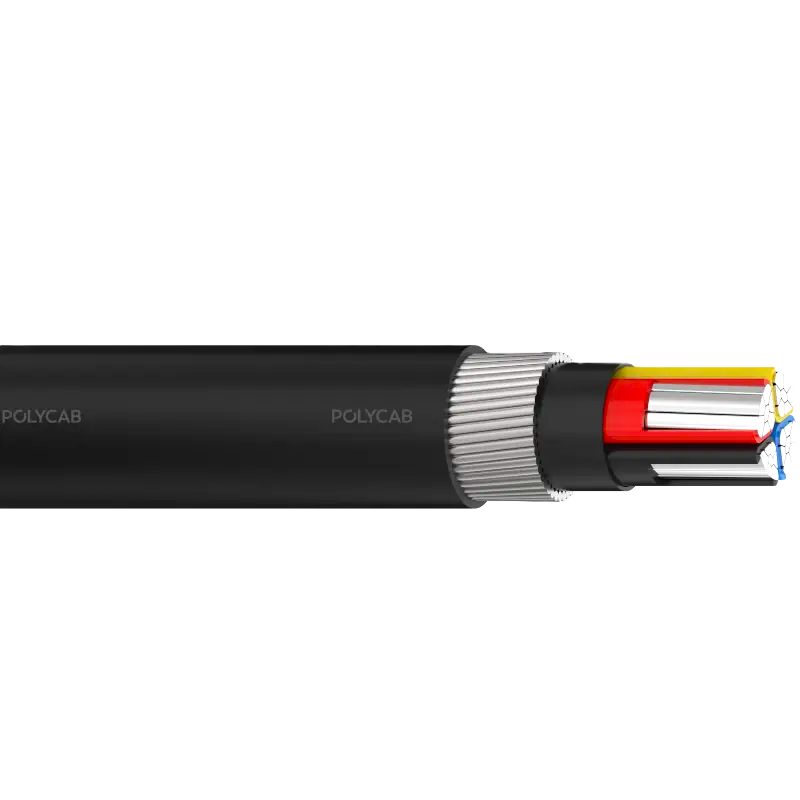

Polycab LV AL IEC 60502-1 0.6/1kV MC-3.5 SWA
18 products sold in last 20 hours
Selling fast! Over 11 people have in their cart
Multicore stranded Aluminium, XLPE/EPR/HEPR insulation, Laid up, inner covering,GI wire,PVC/Polyethylene/Halogen free sheathed Cable suitable for fixed installation such as distribution network or industrial installation.These cables are designed for systems with rated AC voltage 1KV (Um=1.2 KV) between two live conductor.
20 people are viewing this right now
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
Multi core stranded AL conductor, XLPE/EPR/HEPR insulation, Laid up, Inner covering, Armoured, PVC/Polyethylene/Halogen free Outer sheathed LV Cable
click here| GENERAL INFORMATION | |
|---|---|
| Product Type | LV Power Cable |
| Brand | Polycab |
| Model | LV AL IEC 60502-1 0.6/1kV MC-3.5 SWA |
| Cable Type | Multi-Core Steel Wire Armoured Cable |
| Number of Cores | 3.5 Core (3 Main + 1 Neutral) |
| Conductor Material | Stranded Compacted Aluminium |
| Conductor Class | Class 2 as per IEC 60228 |
| Insulation Material | XLPE (Cross Linked Polyethylene) |
| Inner Covering Material | PVC (Extruded or Lapped) |
| Outer Sheath Material | PVC (ST2) / Polyethylene (ST7) / Halogen Free (ST8) |
| Voltage Rating | 0.6/1 (1.2) kV AC & ≤1.5 kV DC (max 1.8 kV DC) |
| Test Voltage | 3.5 kV AC |
| Maximum Operating Temperature | 90°C |
| Maximum Short Circuit Temperature | 250°C |
| Core Identification | Red, Yellow, Blue, and Black (Neutral) |
| Bending Radius | 12 × Overall Diameter |
| Installation Type | Fixed Installation |
| Application | Distribution Network and Industrial Installations |
| Flame Retardant | Yes |
| Low Smoke | Yes |
| Low Halogen | Yes |
| UV Resistant | Yes |
| High Insulation Resistance | Yes |
| Armour Type | Galvanised Steel Wire Armoured (SWA) |
| Standards Followed | IEC 60228, IEC 60502-1, IEC 60332-1-2 |
| Conductor Resistance Compliance | IEC 60228 |
| Insulation Resistance Compliance | IEC 60502-1 |
| Shrinkage Test Compliance | IEC 60811-503 |
| Flame Retardant Test | IEC 60332-1-2 |
| Brand Customer Care Email ID | enquiry@polycab.com |
| Brand Customer Care Phone No | 1800 267 0008 |
| ITEM DIMENSIONS | |
| Attribute | Value (for 25 sq.mm variant) |
| Nominal Cross Sectional Area | 25 sq.mm |
| Insulation Thickness | 0.90 mm |
| Inner Covering Thickness | 1.00 mm |
| Armouring Wire Diameter | 1.60 mm |
| Sheath Thickness | 1.80 mm |
| Overall Diameter | 23.0 mm |
| Approximate Weight | 1150 Kg/Km |
