Polycab LV IS-7098-I 3C A2XFY
17 products sold in last 9 hours
Selling fast! 1 person has in their cart
POLYCAB A2XFY MC-3, Stranded compacted aluminium conductor, XLPE insulated, PVC inner sheathed, Galvanised Steel Flat strip armour and PVC sheathed confirming to IS 7098-1 is suitable for AC single phase or three phase (earthed or unearthed) systems with rated voltage up to and including 1100 V. This cable is also suitable for DC systems with rated voltage up to and including 1500 V.
29 people are viewing this right now
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200

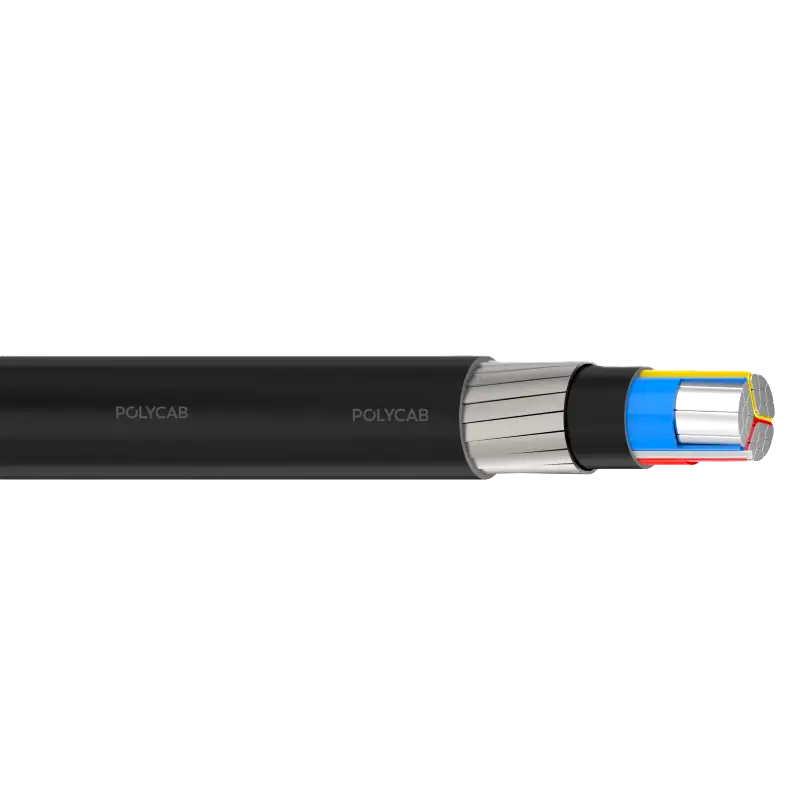

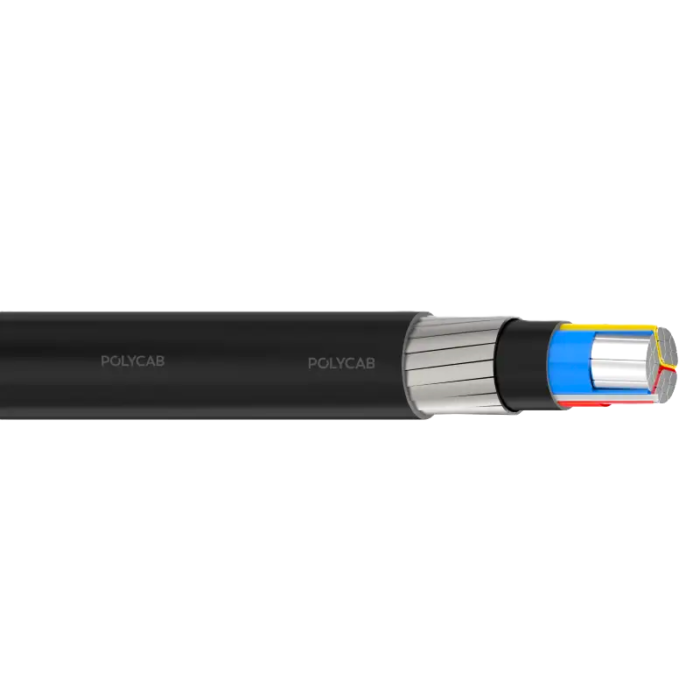

Three core aluminium, XLPE Insulation, Inner sheathed & GI flat armoured & PVC Outer sheathed cable.
click here| GENERAL INFORMATION | |
|---|---|
| Product Type | LV Power Cable |
| Brand | Polycab |
| Model | LV IS-7098-I 3C A2XFY |
| Cable Type | Multi-Core Armoured Cable |
| Number of Cores | 3 Core |
| Conductor Material | Stranded Compacted Aluminium |
| Conductor Class | Class 2 as per IS 8130 |
| Insulation Material | XLPE (Cross Linked Polyethylene) |
| Inner Sheath Material | PVC (ST2 / FRLS /FR / LSZH) |
| Outer Sheath Material | PVC (ST2 / FRLS / FR / LSZH) |
| Voltage Rating | 650/1100 V AC (1.1 kV) |
| Maximum Operating Temperature | 90°C |
| Maximum Short Circuit Temperature | 250°C |
| Core Identification | Red, Yellow, Blue |
| Bending Radius | 12 × Overall Diameter |
| Installation Type | Fixed Installation |
| Application | Power Distribution and Industrial Installations |
| Flame Retardant | Yes |
| Low Smoke | Yes |
| Low Halogen | Yes |
| UV Resistant | Yes |
| High Insulation Resistance | Yes |
| Armour Type | Galvanised Steel Flat Strip |
| Standards Followed | IS 7098-1, IS 8130, IS 3975, IS 5831 |
| Conductor Resistance Compliance | IS 8130-2013 |
| Insulation Resistance Compliance | IS 7098-1:1988 |
| Flame Retardant Test | IEC 60332-1-2015 |
| Brand Customer Care Email ID | enquiry@polycab.com |
| Brand Customer Care Phone No | 1800 267 0008 |
| ITEM DIMENSIONS | |
| Attribute | Value |
| Nominal Cross Sectional Area | 4 sq.mm (available from 4-630 mm²) |
| Insulation Thickness | 0.70 mm (for 4 mm²) |
| Inner Sheath Thickness | 1.00 mm |
| Armour Thickness | 0.50 mm (for 4-25 mm²) |
| Sheath Thickness | 1.30 mm (for 4 mm²) |
| Overall Diameter | 15.8 mm (for 4 mm²) |
| Approximate Weight | 240 Kg/Km (for 4 mm²) |
